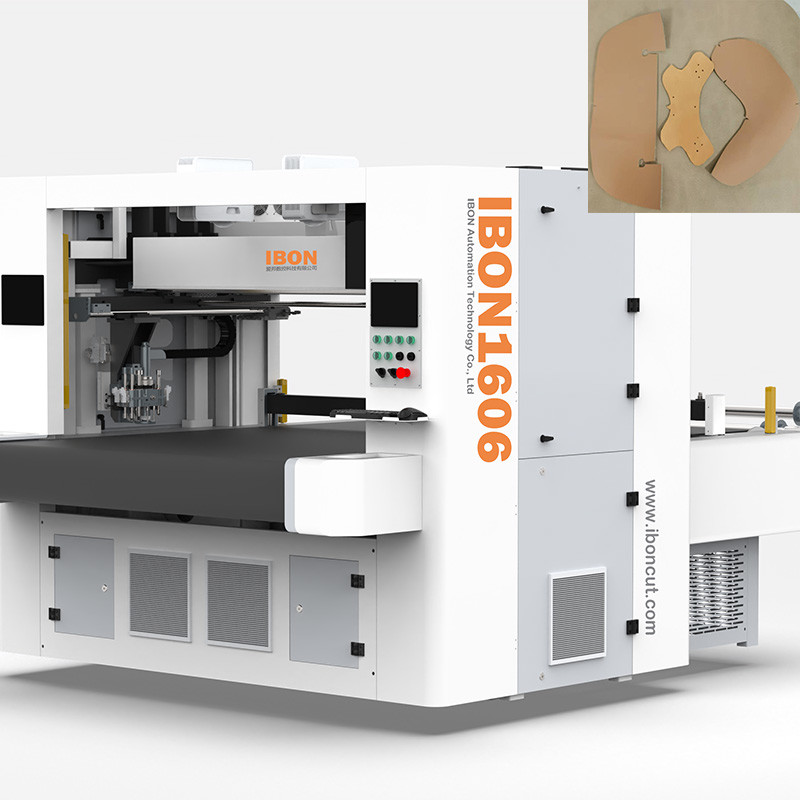

IBON Gantry Dual-Head Cutting Machine for 24mm Multi Layers Insole Rubber Material Cutting

Brand Name : IBON

Model Number : IB-ST-1606

Certification : CE

Place of Origin : DongGuan, China

MOQ : 1

Payment Terms : ,T/T,Western Union,MoneyGram

Supply Ability : 300 sets per month

Delivery Time : 15~25days

Packaging Details : Wooden Case

Product name : Wall-Mounted Gantry Dual-Head Asynchronous Cutter

Customization : Available

After-sales Service : Three Year Warranty

Warranty : Lifetime Free Upgrade Lifelong Free Service

Cutting Materials : Gasket,PVC,EPE,Rubber,Foam,Sponge,Carbon Fiber,Composite Material.,etc.

Cutting speed : 200-2600mm/s

Standard Configuration : Dual Projection, dual blade

Working Size : 1600*600mm

Feeding Method : Automatic feeding

Cutting Precision : +-0.1mm

Cutting thickness : 0.1-30mm(depends on the material)

Material fixation : Vacuum partition automatically follows adsorption

Transmission mode : Gear rack,linear guide rail

Transmission motor : Imported technology servo motor

Data format : DXF\HPGL

Interface : USB or internet

Rated Voltage : AC220V-380V,50HZ

Rated Power : 13.2KW

Contact Now

CNC Automated Multi Layers insole Rubber PVC Leather Cutting Machine

Whether you are manufacturing from fashion products to furniture and upholstery or composite parts, we offer flexible material cutting machine solutions that will help you to achieve the highest level of cutting quality, minimise fabric waste while boosting productivity.

IBON Gantry Dual-Head Cutting Machine for 24mm Multi Layers Insole Rubber Material CuttingIBON Gantry Dual-Head Cutting Machine for 24mm Multi Layers Insole Rubber Material Cutting

Product Features:

1.Precision-cast body ensures strength and stability.

2.Campact design,ideal for cutting multi-layer small pieces,saves space.

3.Intelligent nesting and cuting system improves efficiency, saves time and materials.

4.Dual-head asynchronous cutting with punching and intefgrated toolholder for precise,efficient operation.

5.Integrated software combines nesting and cutting, speeds up workflow,and maximizes material use.

6.High-frequency pneumatic knife cuts materials like PU,mesh,and PVC;16-zone vacuum adsorption ensures stabiltiy.

7.High-quality imported components (servo motos,guide rails,pneumatic parts) ensure precison,stability and durability.

Applicable industries and materials
Automobile Industry: Car Mats, leather seats, Aluminum Composite
Advertising industry: Acrylic, Flag Banner, KT board display stand, Foam Board, corrugated paper showcase , Reflective Strips, MDF, Plastic
Packaging industry: EVA Foam, Kraft Paper, corrugated paper, cardboard, hollow board, Grey board

After Sevice

IBON Gantry Dual-Head Cutting Machine for 24mm Multi Layers Insole Rubber Material Cutting

Packaging Shipping

IBON Gantry Dual-Head Cutting Machine for 24mm Multi Layers Insole Rubber Material Cutting
